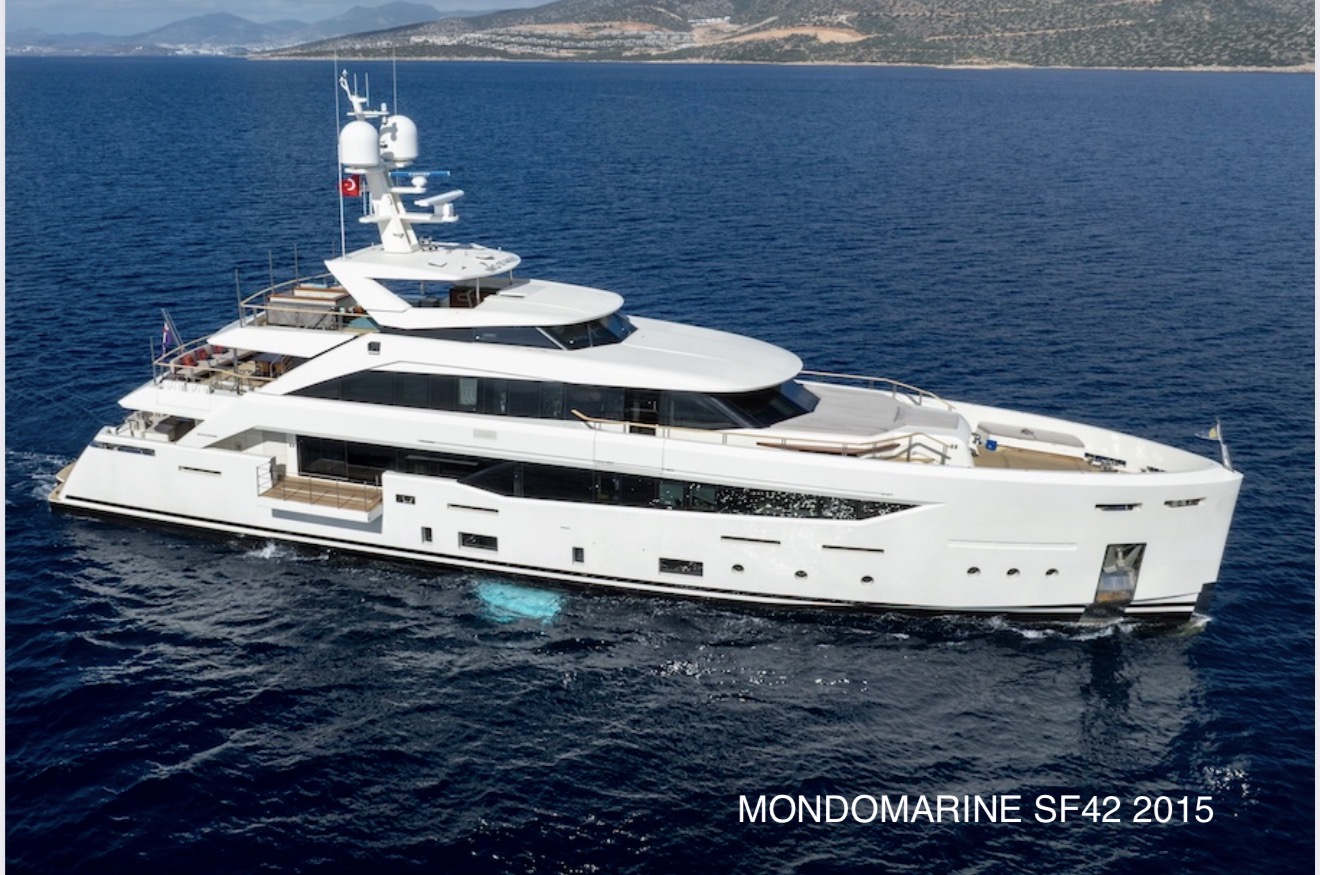

2015 MONDOMARINE SF42

£15,250,000.00

Mondomarine SF42 (2015) Description

Category:

Description

Gallery

The Stats

Year built: 2015
Length: 42.33 m (138 ft)
Cabins: 5: Master Suite (Double) on Upper Deck, 2 VIP Cabin (Doubles), 2 Twin Cabins, 2 Pullmans
Guests: 12
Crew: 8
Located in: Turkey, Gocek
Broker Ref. No: MONDOMARINE SF42 – 2015 – Superyacht for Sale

KEY FEATURES

  • All-aluminium construction
  • Lightweight construction, thus better performance and impressive 4,500 nautical mile range
  • Owned by first and original owner, meticulously maintained
  • MCA coded, charter compliant but solely used privately
  • Low engine hours

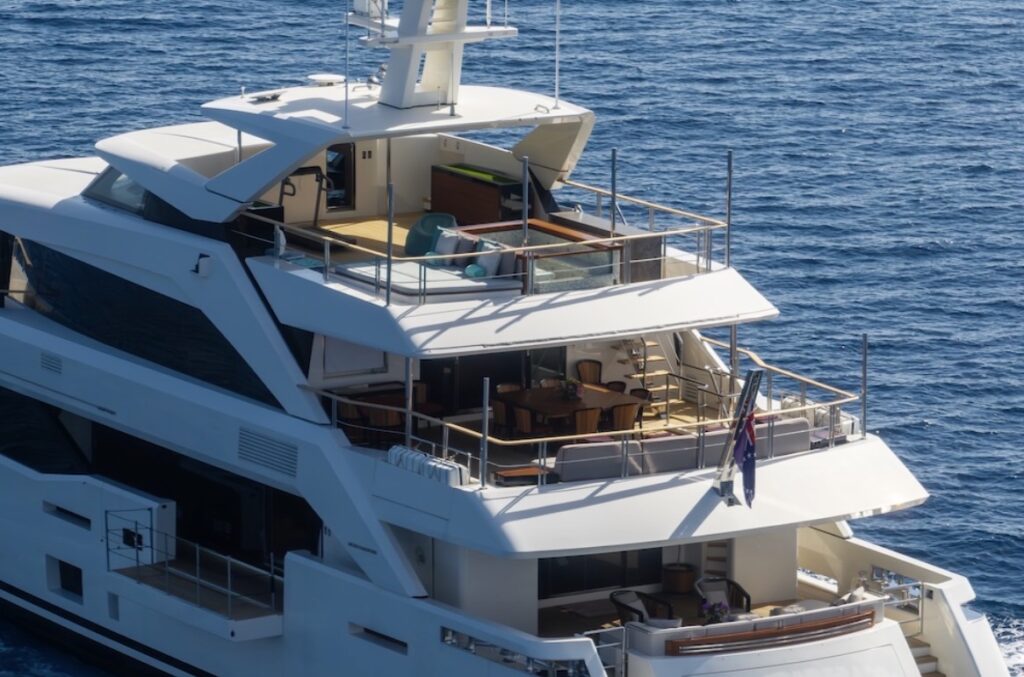

  • Owner’s deck with two private terraces, a split-level Master suite with 180 degree view and family cinema skylounge
  • Fold-down side balconies in the main saloon with full-height glazing for a seamless connection with the sea
  • Maximized external space
  • Infinity-style sundeck pool
  • Transformer-style bathing ladder for effortless water access

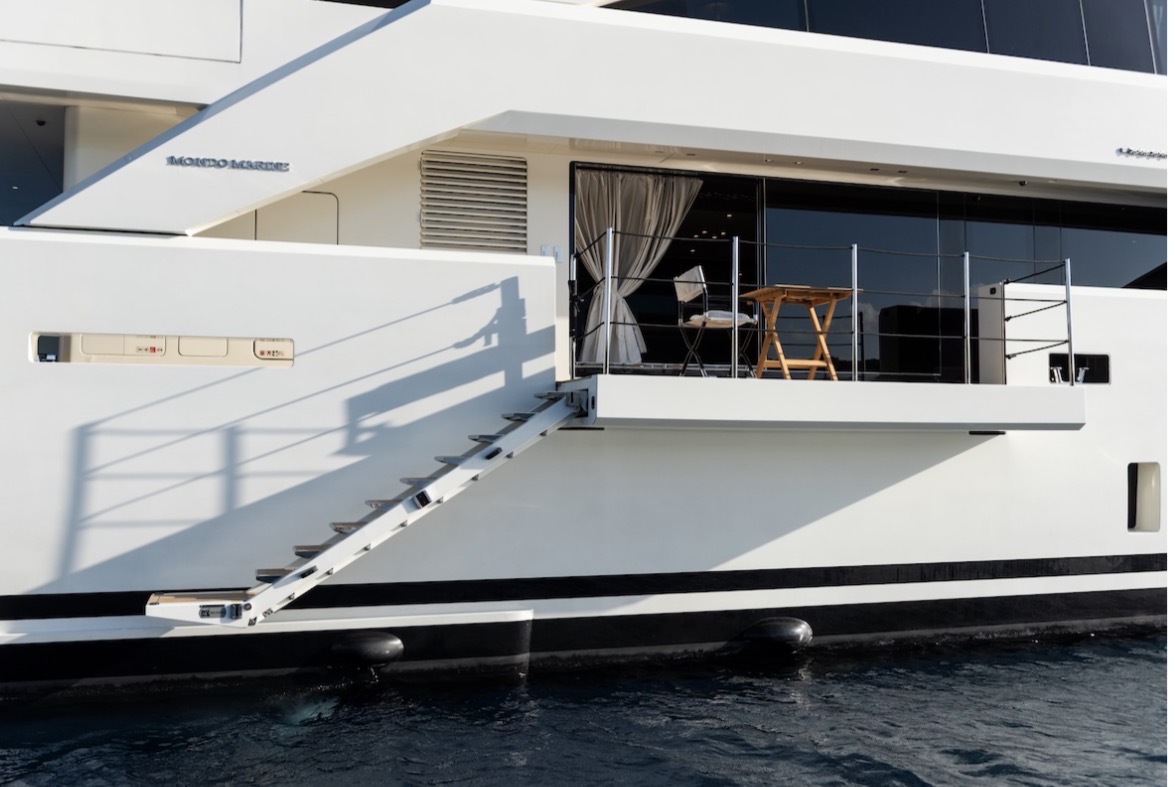

  • Hydraulic side boarding ladder for easy side entry

AWARDS

  • Winner of World Superyacht Awards 2016 in the category of Semi-displacement and three-deck motor yacht over 41m
  • Finalist of Showboats Design Awards 2016 in the category of Naval architecture award, Semi-displacement Yachts

MAIN CHARACTERISTICS

  • Builder: Mondomarine S.p.A. (Italy)
  • Model: Mondomarine SF42
  • Naval Architecture: Mondomarine
  • Exterior Design: Luca Vallebona
  • Interior Design: Luca Vallebona
  • Type: Motor Yacht / Superyacht / Tri-deck Yacht
  • Hull Type: Displacement
  • Paint: AWL GRIP – Oyster White
  • Hull Material: Aluminium Alloy
  • Superstructure Material: Aluminium Alloy
  • Decks: Teak-laid
  • Year Built: 2015
  • Overall Length: 42.33 m (138’ 10”)
  • Beam Overall: 8.80 m (28’ 10”)
  • Draft (half load): 2.00 m (6’ 7’’)
  • Gross Tonnage: 496 GT
  • Net Tonnage: 148 T
  • Displacement: 325,100 kg (716,723 lb)
  • Class: RINA C HULL • MACH, YCH Unrestricted Navigation
  • Commercial Compliance: Bureau Veritas / MCA Commercial
  • Flag of Registry: Cook Islands
  • Location: Göcek, Turkey

PROPULSION

  • Type / Fuel: Twin Screw Diesel
  • Main Engines: 2 x 1920 Hp (1432 kW) MTU 12V 2000 M94 @ 2450 RPM
  • Engine Year: Port 2025 (replaced); Starboard 2015
  • Engine Hours: Port 163 h; Starboard 6408 h (Dec. 2025)
  • Maximum Speed: 16.5 knots
    • Consumption: 720 l/h
    • Range: 1400 NM
  • Cruising Speed: 14 knots
    • Consumption: 420 l/h
    • Range: 2200 NM
  • Economical Speed: 10.5 knots
    • Consumption: 100 l/h
    • Range: 4500 NM
  • Engine Mounts: 2 x Silent blocks
  • Drives: 2 x 8145 mm shafts
  • Gearboxes: 2 x ZF 3350
  • Propellers: 2 x RADICE 5-blades
  • Engine Control Room: Air-conditioned

TANKAGE

  • Fuel Capacity: 64,880 l (17,139.5 US Gallons)
  • Day Tanks: 2 x (Port/Stbd) 4,300 l (1,136 US Gallons)
  • Settling Tanks: 7,840 l (2,071 US Gallons)
  • Storage Tanks: 51,440 l (13,589 US Gallons)
  • Fresh Water Capacity: 14,620 l (3,862 US Gallons)
  • Grey Water Tank: 5,720 l (1,511 US Gallons)
  • Black Water Tank: 2,000 l (528 US Gallons)
  • Bilge Water Tank: 1,790 l (473 US Gallons)
  • Ballast Water: 33,150 l (8,757 US Gallons)
  • Lube Oil: 540 l (143 US Gallons)
  • Waste Oil: 540 l (143 US Gallons)

ACCOMMODATION

  • 12 Guests in 5 en-suite staterooms
  • Guest Cabin Configuration :

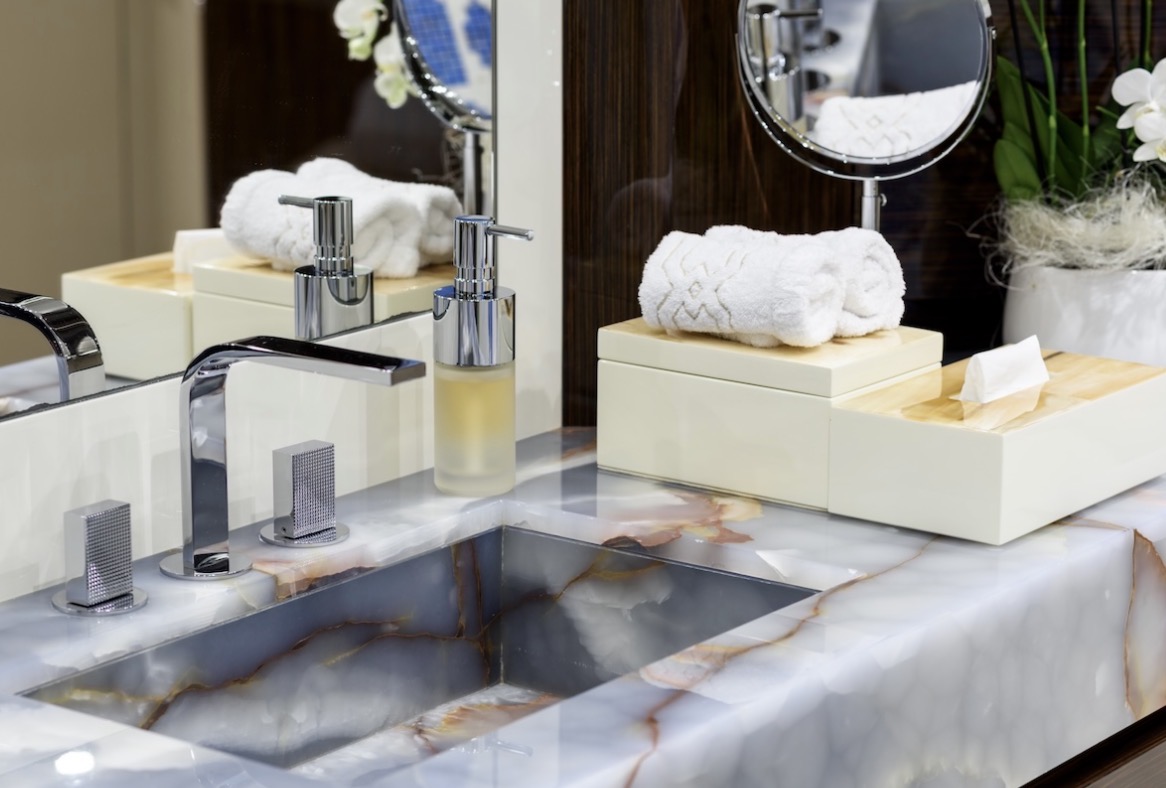

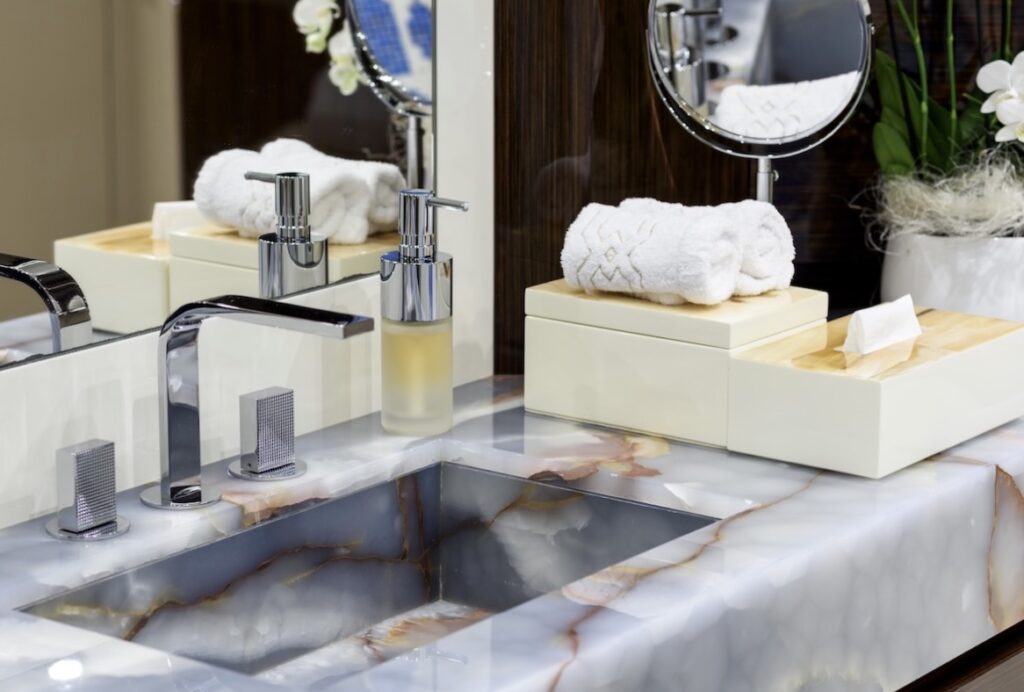

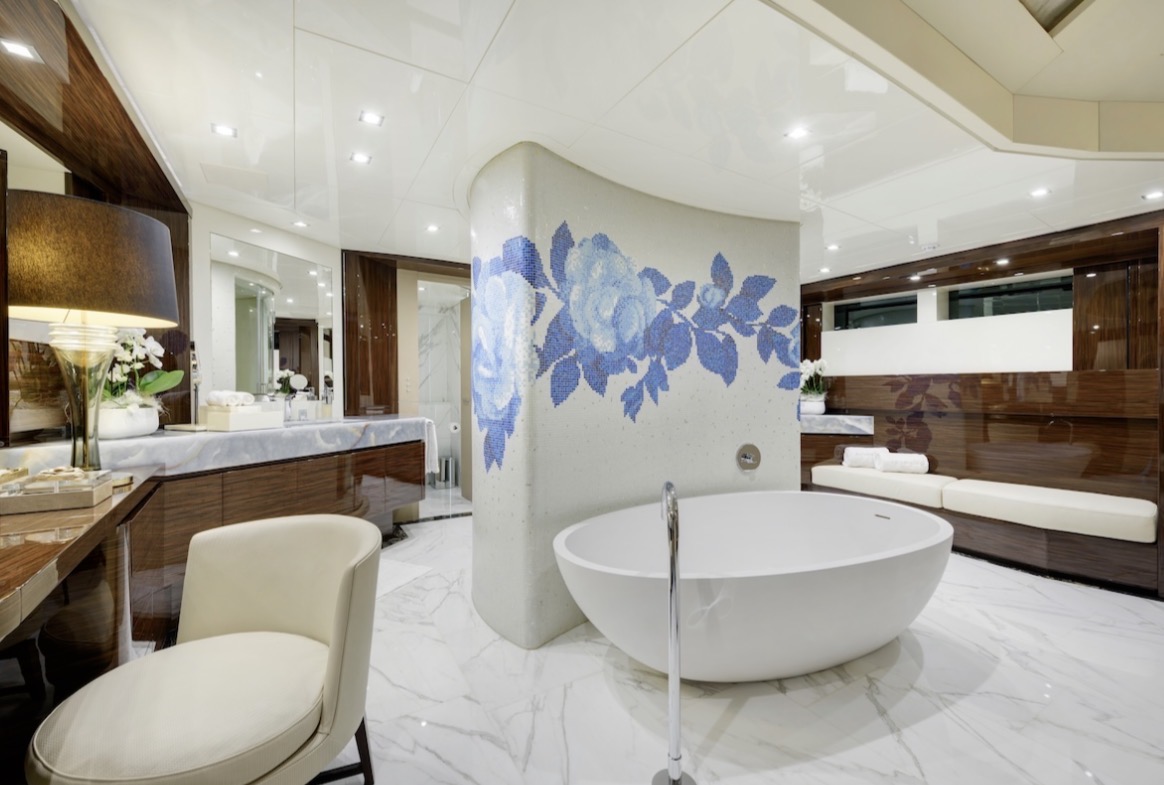

    • Owner’s suite on upper deck, facing forward with King-size bed, 180ᵒ panoramic views, 2 sliding doors leading to port & starboard balconies, split-deck en-suite bathroom with wardrobes, His & Hers washbasins and WCs, vanity, couch, central bathtub and separate circular shower compartment

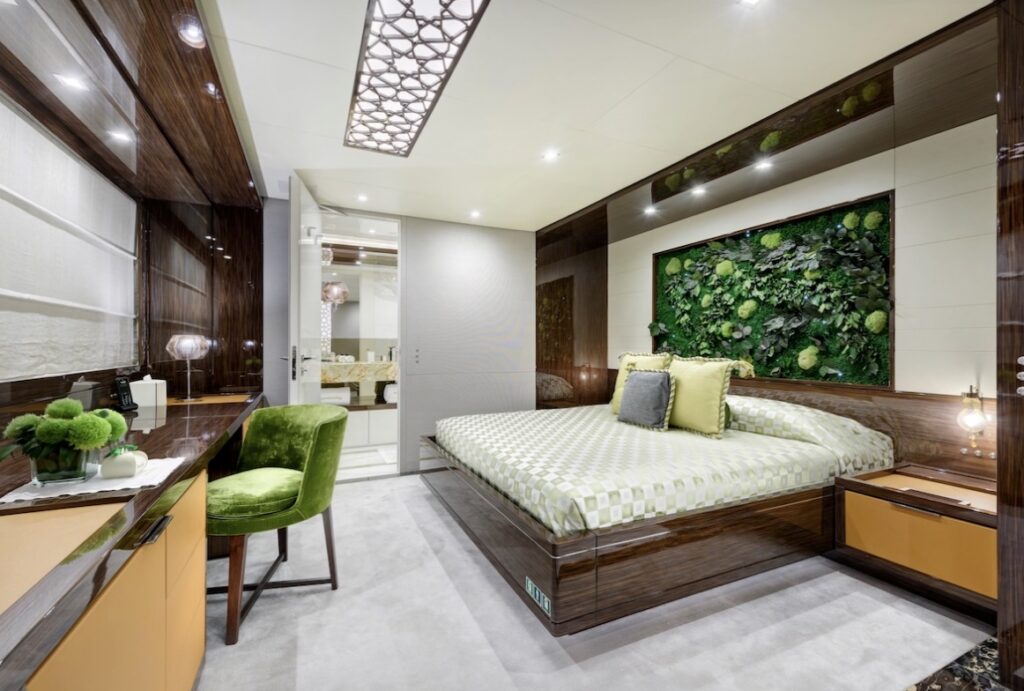

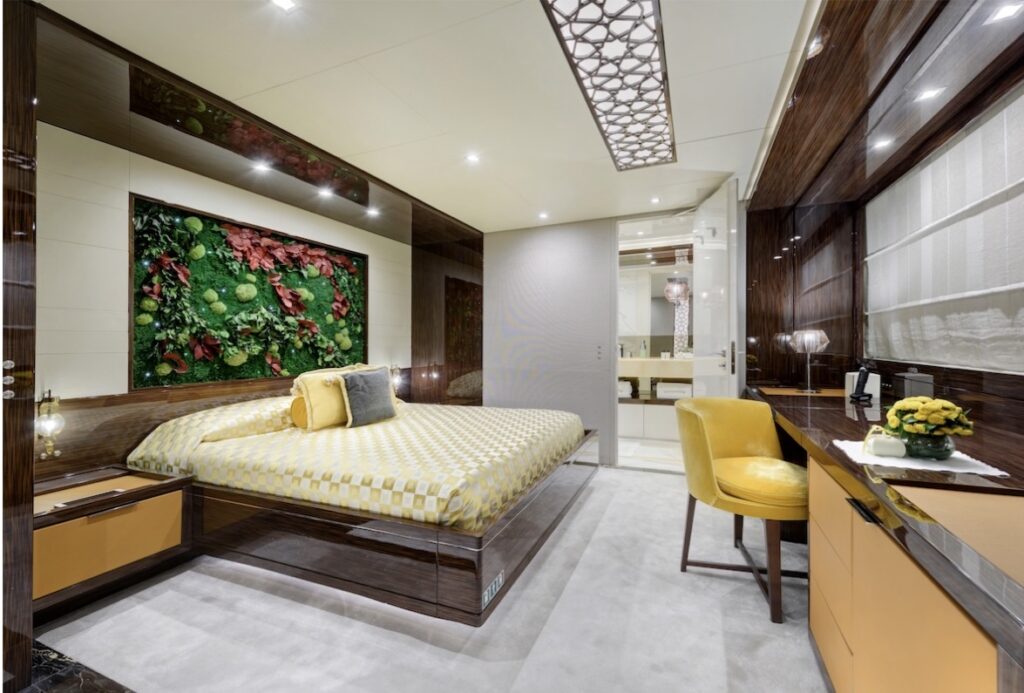

    • 2 x VIP double guest cabins on lower deck, each with vanity/desk, wardrobes and en-suite bathrooms
    • 2 x Twin guest cabins on lower deck, each with wardrobes, en-suite bathrooms and additional Pullman beds
  • Bridge deck with wheelhouse in raised pilothouse

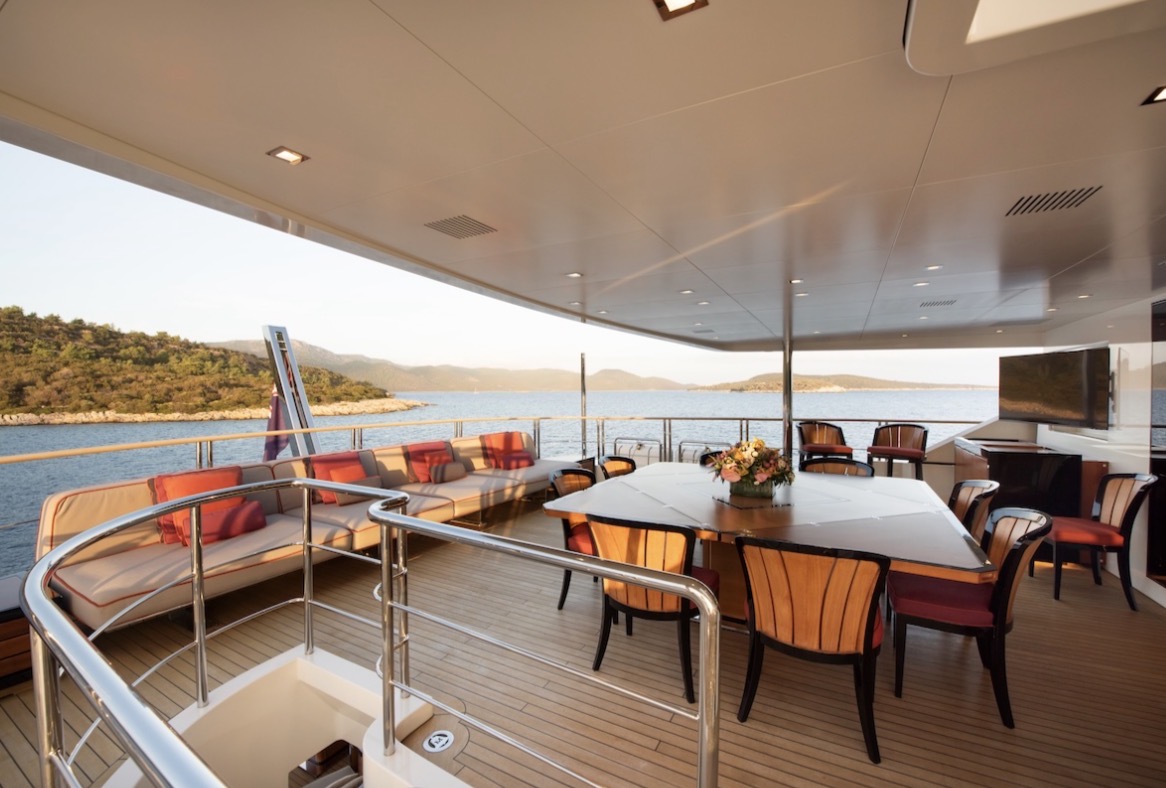

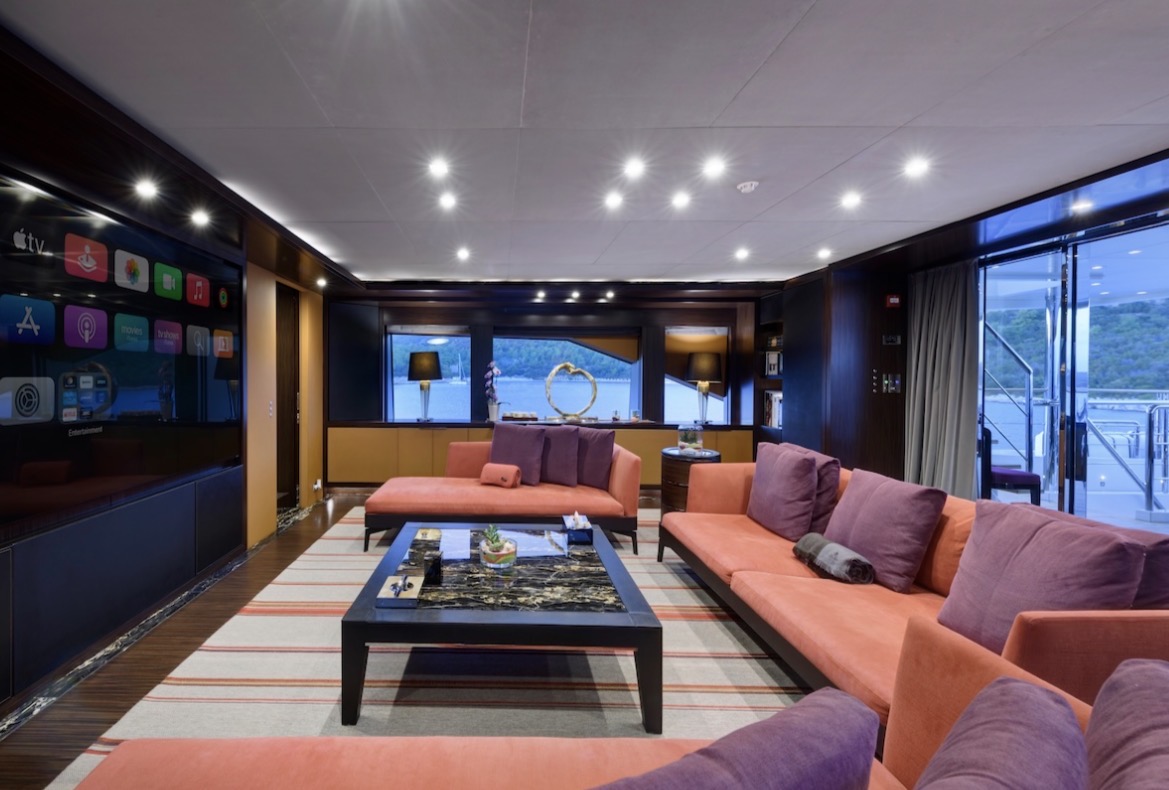

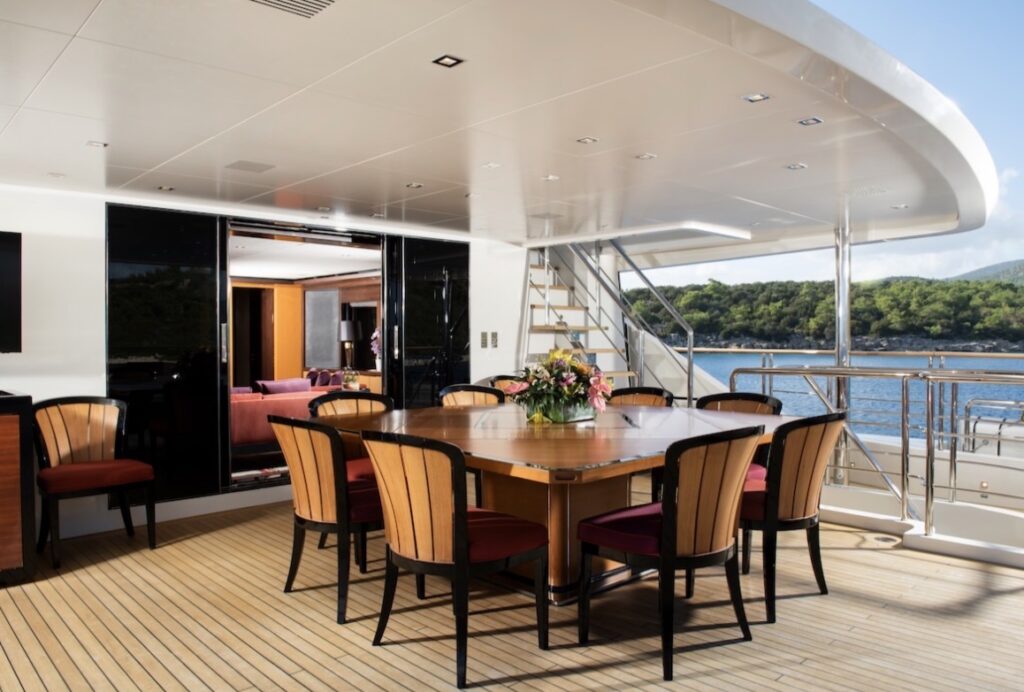

  • Upper deck with family/cinema room, day head, aft exterior bar and dining

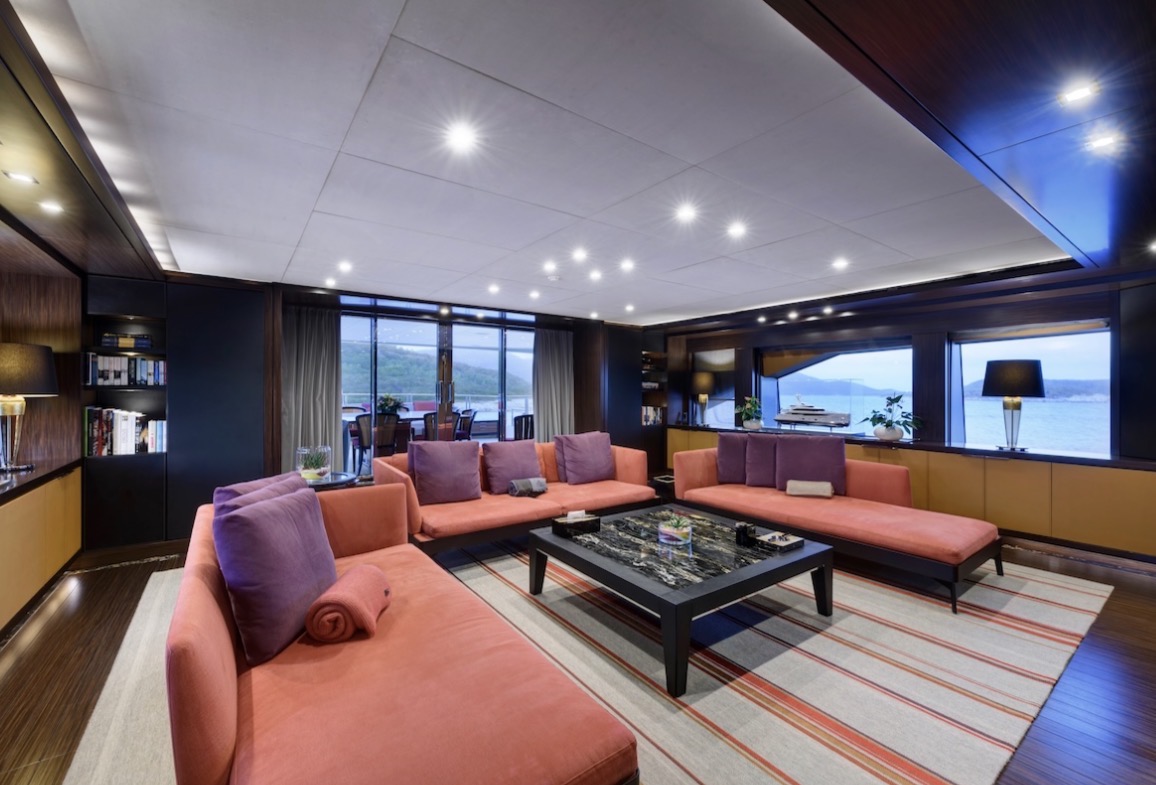

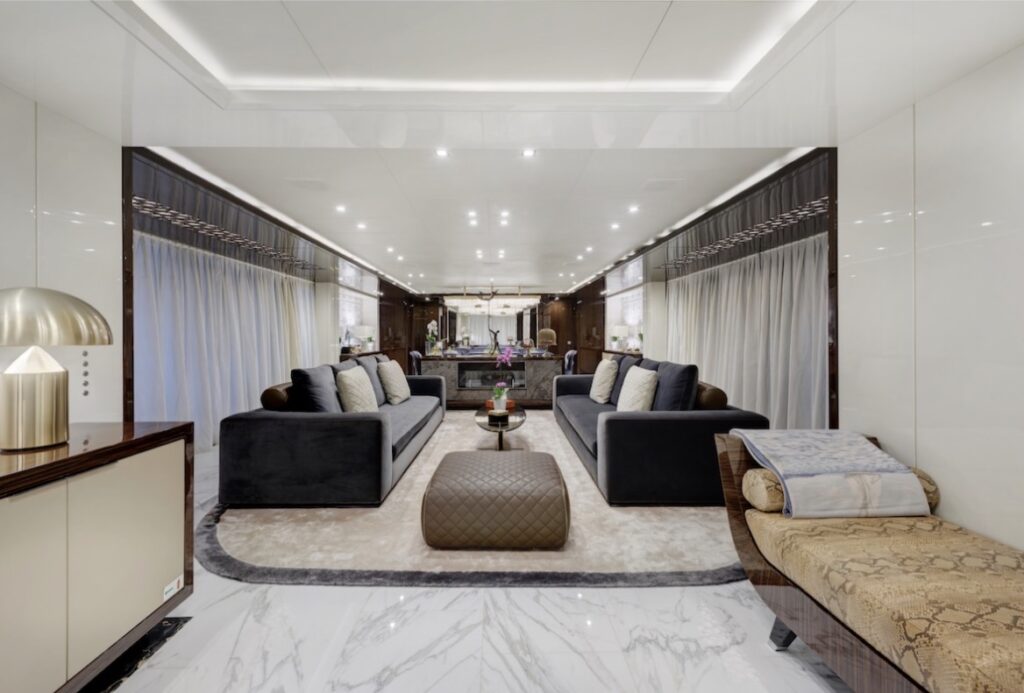

  • Main deck with welcoming lounge, main saloon, central TV cabinet and fireplace, formal dining area, 2 full-height sliding doors to access opening balconies, day head, fully equipped galley and pantry, crew mess with dinette, guest laundry
  • Lower deck with crew quarters and crew laundry forward, engine control room aft
  • Crew Accommodation:
    • Up to 8 crew in 4 cabins
    • Double Captain’s cabin with desk
    • 3 x Bunk-bedded crew cabins for 2 crew each
  • Crew laundry, crew mess
  • 2 x Separate stairwells (Guests & Crew) for privacy

MAIN EQUIPMENT

  • Bow Thruster: CMC Marine Dualis electric, 85 kW, 400V, 3-phase, 50Hz
  • Stern Thruster: Hydraulic 40 kW
  • Stabilizers: 2 x NAIAD underway and at anchor fin stabilizers
  • Hydraulic Power Packs: 2 x OPEM SISTEMI hydraulic power units
  • Steering System: OPEM SISTEMI operated by hydraulic power pack
  • Steering Gear: 2 x Rudders with hydraulic pistons
  • Emergency Steering: Manual wheel with steering pump
  • Fuel Filters: 2 x MAHALE Kfwa per engine
  • Fuel Oil Separator: ALFA LAVAL MIB 303 separator system
  • Fuel Transfer Pump: GIANNESCHI ACB 431B
  • Fuel Filling Pump: MAHALE filter fuel pump
  • Oily Bilge Water Separator: OILCHIEF DVZ 250 FSU
  • Dirty Oil Pump: GIANNESCHI FQ40
  • Lubrication Oil Pump: GIANNESCHI FQ40
  • Firefighting & Bilge Pumps: 2 x GIANNESCHI ACM 502 BT
  • Emergency Motorpump: GIANNESCHI MAC B531
  • Fresh Water Makers: IDROMAR M/C95 Duplex 400 l/h (106 US Gallons)
  • Fresh Water Treatment: IDROMAR 9100
  • Fresh Water Pressure: 4.0 Bar
  • Hot Water Circulation Pumps: 2 x GIANNESCHI TOP-Z30
  • Hot Water Boilers: 2 x GIANNESCHI 200 l 200VE
  • Black & Grey Water Treatment: TEACNICOMAR Ecomar16
  • Sanitary Vacuum System: 2 x JETS Pumps Grey/Black Water
  • Sanitary Water System: 2 x Fresh water pumps GIANNESCHI MAK 300D
  • WCs (Toilets & Bidets): 12
  • Black & Grey Water Pumps: 2 x GIANNESCHI pumps MVI-60
  • Air Conditioning: FRIGOMAR
  • Air Compressors: 4
  • Air Handling Units: 5
  • Galley Ventilation & Extraction: 1 x Fan and 1 x Extraction
  • Engine Ventilation:
    • GIANNESCHI fan, reverse-ELL/AP719
    • GIANNESCHI exhausts reverse-ELL/AP569
